สแตนเลสสตีล 316L ข้อต่อแบบสวมอัดชนิดท่อ PIPE ข้อศอกเชื่อมชน

บ้าน / สินค้า / ฟิตติ้งท่อเหล็กสแตนเลส / ท่อเพื่อเชื่อมปลาย / สแตนเลสสตีล 316L ข้อต่อแบบสวมอัดชนิดท่อ PIPE ข้อศอกเชื่อมชน

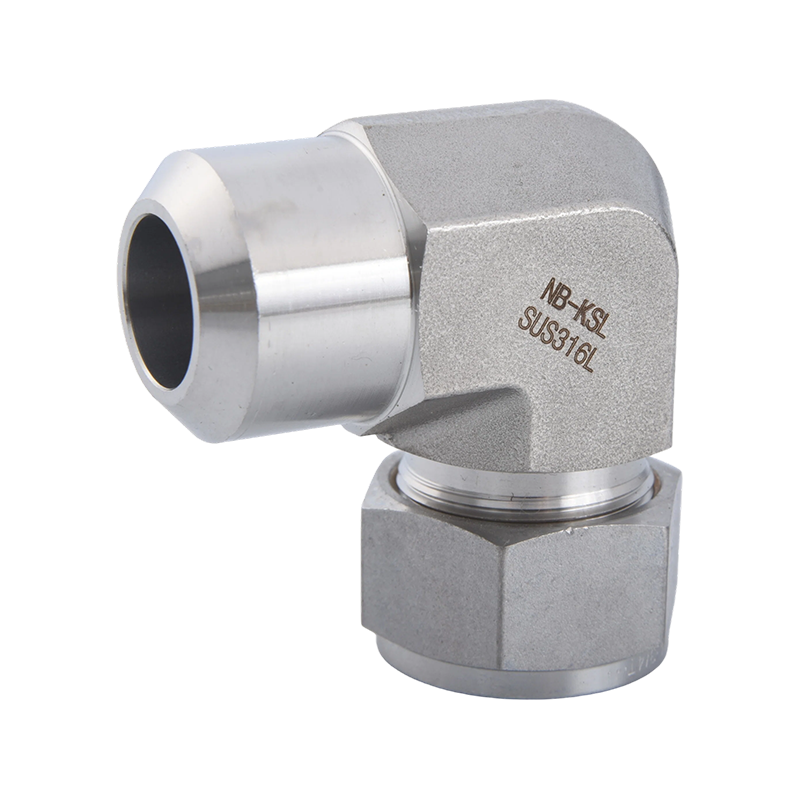

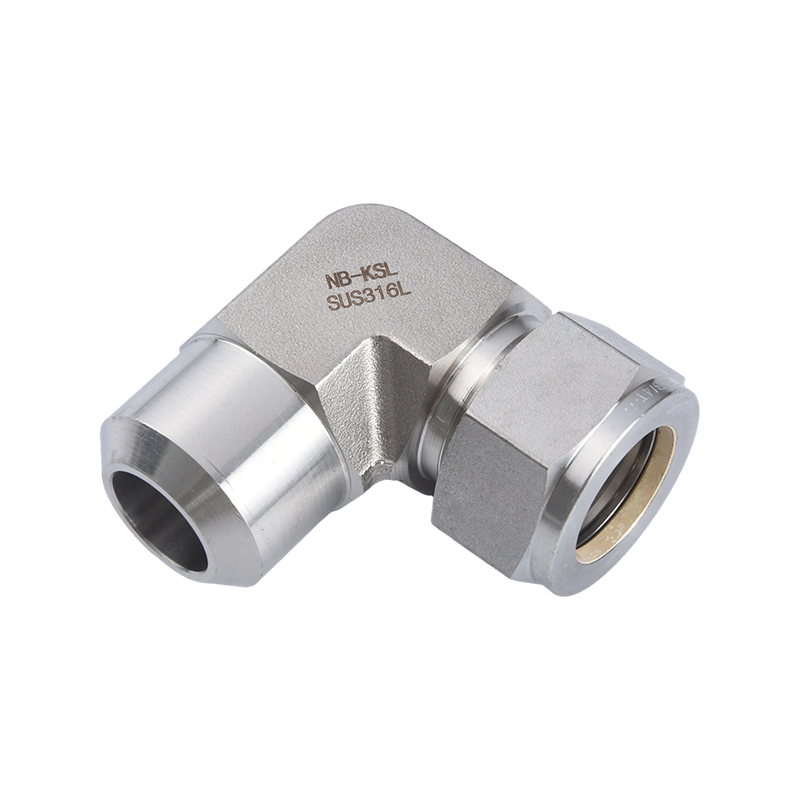

สแตนเลสสตีล 316L ข้อต่อแบบสวมอัดชนิดท่อ PIPE ข้อศอกเชื่อมชน

ผลิตภัณฑ์นี้เป็นตัวเชื่อมต่อประสิทธิภาพสูงที่ออกแบบมาโดยเฉพาะสำหรับระบบขนส่งของเหลวที่มีความต้องการสูง ข้องอนี้เป็นข้อต่อท่อที่ใช้เปลี่ยนทิศทางการไหลของท่อโดยมีมุม 45 องศา หรือ 90 องศา และยังมีข้องอกลับ 180 องศาอีกด้วย คุณสมบัติเชิงโครงสร้างทำให้แตกต่างจากข้อศอกทั่วไปอย่างเห็นได้ชัด: ปลายก้นของท่อได้รับการออกแบบสำหรับการเชื่อมแบบก้นเต็มไปยังท่อหลัก ปลายของมันผ่านการบากอย่างแม่นยำเพื่อให้แน่ใจว่ามีการเจาะทะลุและคุณภาพการเชื่อม ปลายการเชื่อมต่อแบบบีบอัดได้รับการออกแบบมาเพื่อการเชื่อมต่อที่รวดเร็วและไร้รอยเชื่อม ปลายนี้มีพื้นผิวการซีลแบบเรียวหรือโครงสร้างปลอกโลหะภายใน ซึ่งเมื่อใช้ร่วมกับน็อตและส่วนประกอบการบีบอัด (เช่น ปลอกหุ้ม โอริง หรือวงแหวนดันโลหะ) จะทำให้องค์ประกอบการซีลเปลี่ยนรูปโดยใช้แรงอัดตามแนวแกนที่เกิดจากการขันน็อตให้แน่น

  • คำอธิบาย
  • ติดต่อเรา

ข้อศอกเชื่อมซ็อกเก็ตท่อ

เชื่อมต่อท่อเศษส่วนกับท่อ

ที ทูบ โอ.ดี.

ท่อตัวผู้ SIZI P

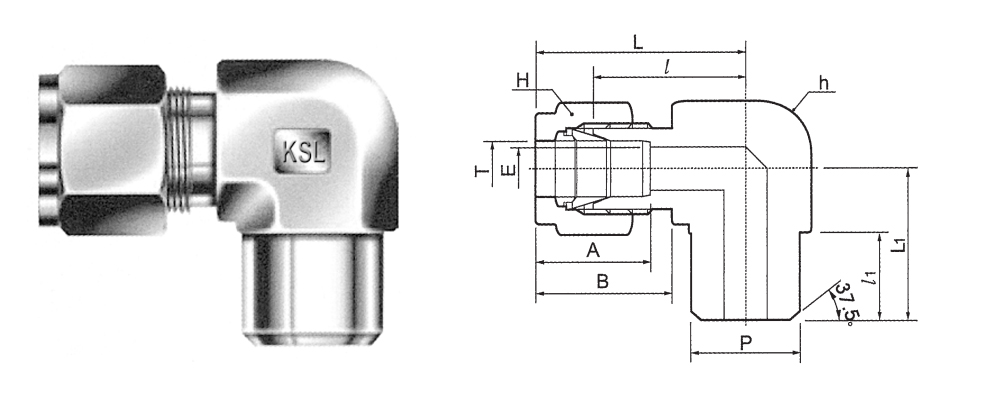

หมายเลขแค็ตตาล็อก

A

B

E

h

H

/

/1

L

L1

1/8

10.29

EBW-01-1P

14

16.5

2.4

12.7

12

18.6

10

26.1

19.1

1/4

10.29

EBW-02-1P

15.8

17.8

4.8

15

14

19.6

10

27.1

21.1

1/4

13.72

EBW-02-2P

15.8

17.8

4.8

15

14

23.2

14.2

30.7

23.2

3/8

13.72

อีบีดับเบิลยู-03-2P

19.6

19.6

7.1

15

17

21.3

14.2

27.8

24

1/2

21.34

อีบีดับเบิลยู-044P

23.4

22.2

10.4

23

22

26.5

17

36.5

31

3/4

26.67

อีบีดับเบิลยู-06-6P

24.4

22.4

15.7

28

30

29.7

19

40.1

38.8


เชื่อมต่อท่อเศษส่วนกับท่อ

ที ทูบ โอ.ดี.

ท่อตัวผู้ SIZI P

หมายเลขแค็ตตาล็อก

A

B

E

h

H

1

/

L

L1

8

10.29

อีบีดับเบิลยู-8-1พี

16.7

18.7

6.4

15

16

21.3

10

28

21.1

8

13.72

อีบีดับเบิลยู-8-2พี

16.7

18.7

6.4

15

16

21.3

14.2

28

24

8

17.15

อีบีดับเบิลยู-8-3พี

16.7

18.7

6.4

17.5

16

23.1

14.2

29.8

26

8

21.34

อีบีดับเบิลยู-8-4พี

16.7

18.7

6.4

23

16

25.5

17

32.2

31

10

13.72

EBW-10-2P

19.6

19.6

7.9

17.5

19

23.9

14.2

30.9

26

10

17.15

EBW-10-3P

16.6

19.6

7.9

17.5

19

23.9

14.2

30.9

26

12

13.72

EBW-12-2P

23.8

22.8

9.5

23

22

26.5

14.2

37

28.2

12

17.15

EBW-12-3P

23.8

22.8

9.5

23

22

26.5

14.2

37.3

28.2

12

21.34

EBW-12-4P

23.8

22.8

9.5

23

22

26.5

17

37.3

31

14

21.34

EBW-14-4P

24.8

22.8

11.1

23

27

26.5

17

37.3

31

16

21.34

EBW-16-4P

24.4

22.4

12.7

23

27

26.5

17

36.9

31

16

26.67

EBW-16-6P

24.4

22.4

12.7

28

27

29.7

19

40.1

38.8

20

21.34

อีบีดับเบิลยู-20-4พี

25.5

23.5

15.8

28

32

32

17

42.5

38.5

20

26.67

EBW-20-6P

25.5

23.5

15.8

28

32

32

19

42.5

38.5

25

26.67

EBW-25-6P

31.7

27

21.8

35

38

36.8

19

50.5

41.7
