ขั้วต่อเจดีย์แขนการ์ดสแตนเลส 316L

บ้าน / สินค้า / ฟิตติ้งท่อเหล็กสแตนเลส / อะไหล่ / ขั้วต่อเจดีย์แขนการ์ดสแตนเลส 316L

ขั้วต่อเจดีย์แขนการ์ดสแตนเลส 316L

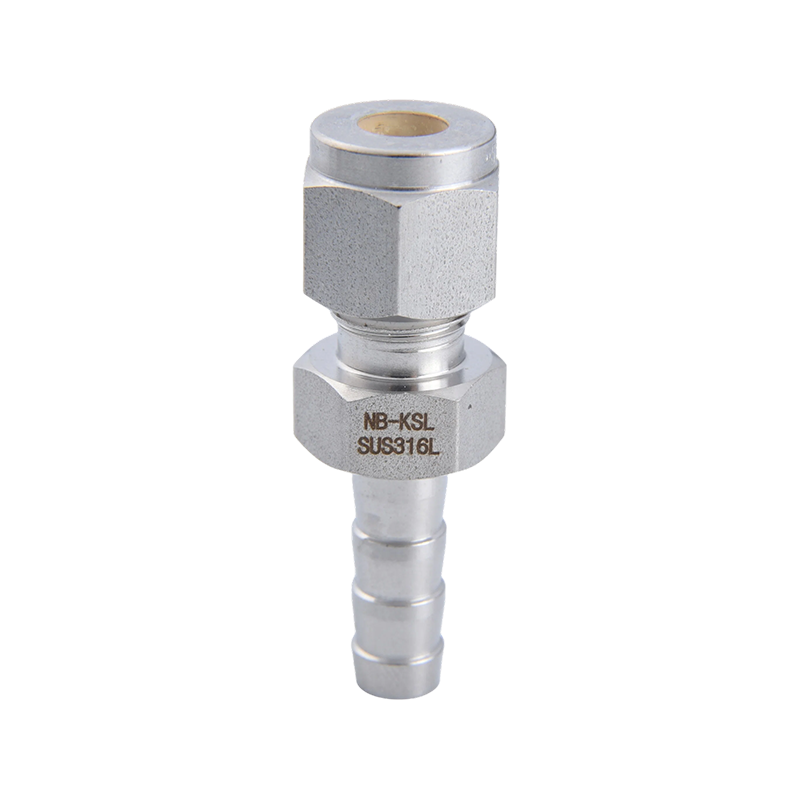

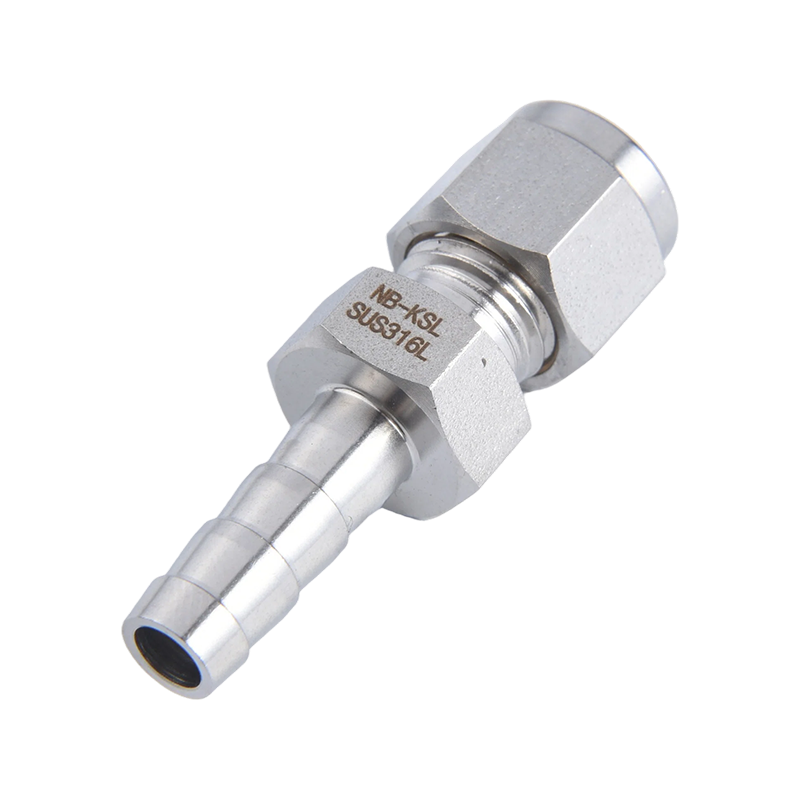

ขั้วต่อเจดีย์ปลอกการ์ดสแตนเลส 316L เป็นอะแดปเตอร์เฉพาะสำหรับระบบท่อของเหลว หน้าที่หลักคือเพื่อให้เกิดการเชื่อมต่อที่มีประสิทธิภาพและปิดผนึกระหว่างท่อแข็ง (เช่น ท่อโลหะ) และท่ออ่อน (เช่น ท่อยางหรือพลาสติก) ตัวผลิตภัณฑ์ทำจากสเตนเลสสตีลออสเทนนิติก 316L ผสมผสานเทคโนโลยีซีลแข็งแบบอัดแน่นเข้ากับโครงสร้างแคลมป์เชิงกลสไตล์เจดีย์ ไม่จำเป็นต้องเชื่อมหรือวูบวาบ การปิดผนึกถาวรบนท่อโลหะทำได้โดยการขันเชิงกลให้แน่น ในขณะเดียวกัน โครงสร้างหนามช่วยให้สามารถประกอบและถอดแยกชิ้นส่วนท่ออ่อนตัวได้อย่างรวดเร็ว ทำให้เป็นส่วนประกอบสำคัญในระบบท่อที่มีความแม่นยำสูง การกัดกร่อนสูง และความสะอาดสูง ปลายนี้ได้รับการออกแบบมาเพื่อเชื่อมต่อท่ออ่อนที่ทำจากวัสดุที่แตกต่างกัน โดยมีส่วนยื่นออกมาเป็นรูปวงแหวนแบบขั้นบันไดที่ปลายตัวเชื่อมต่อ คล้ายกับเจดีย์ หนามเหล่านี้ไม่ใช่วงแหวนธรรมดา แต่ได้รับการออกแบบให้มีมุมเข้าและออกเฉพาะ ปลายหนามแหลมจะแข็งขึ้นหรืออาศัยความแข็งโดยธรรมชาติของ 316L เพื่อเจาะพื้นผิวด้านในของท่ออ่อนตัวได้เล็กน้อย

  • คำอธิบาย
  • ติดต่อเรา

คอนเนคเตอร์ท่อ

เชื่อมต่อท่อเมตริกกับท่อ

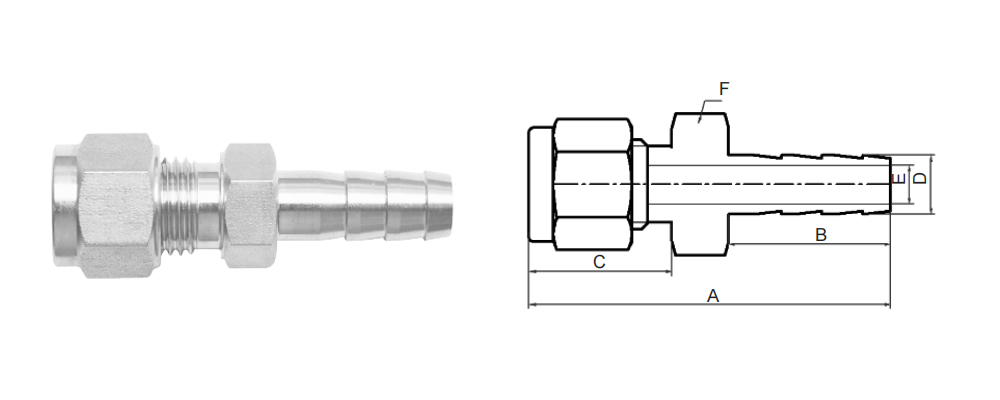

แคตตาล็อก
จำนวน

T

A

B

C

E

D

F

1/4-6มม

พจ็อด-02-6

1/4

44.9

20.1

17.8

4.8

7.27

12

1/4-8มม

พจ็อด-02-8

1/4

46.8

22.1

17.8

6

9

12

3/8-6มม

พจ็อด-03-6

3/8

46.2

20.1

19.6

4.8

7.27

16

3/8-8มม

พจ็อด-03-8

3/8

48.2

22.1

19.6

6

9

16

6มม.-6มม

พจ็อด-6-6

6

44.9

20.1

17.8

4.8

7.27

12

8 มม.-8 มม

พจ็อด-8-8

8

47.8

22.1

18.7

6

9

14

8มม.-1/2

พจ็อด-8-04

8

49.5

23.8

18.7

6.4

15.12

17

12มม.-1/2

PJOD-12-04

12

55.1

23.8

22.8

9.7

15.12

22
