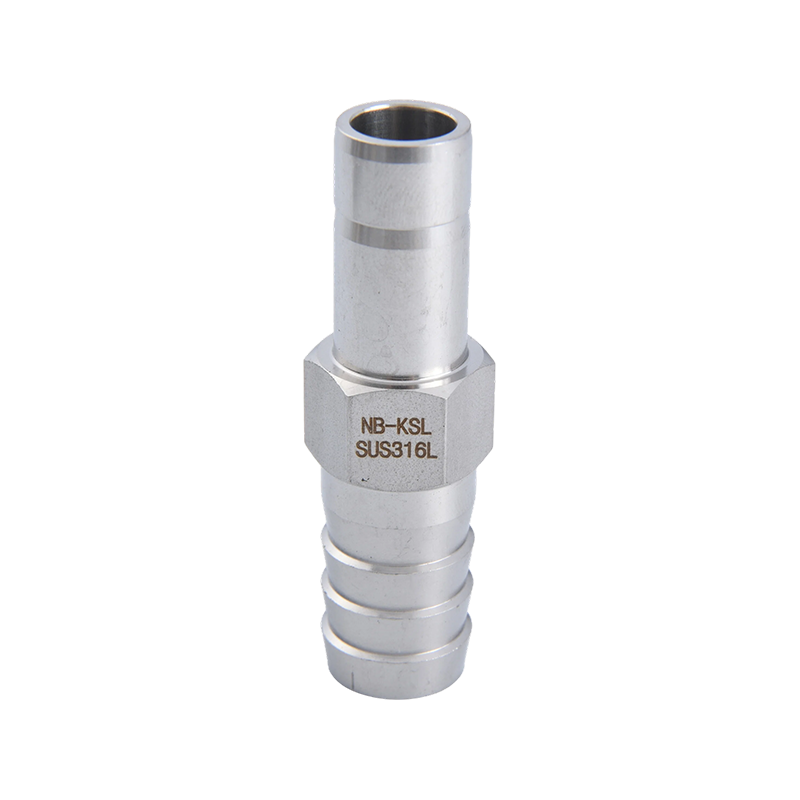

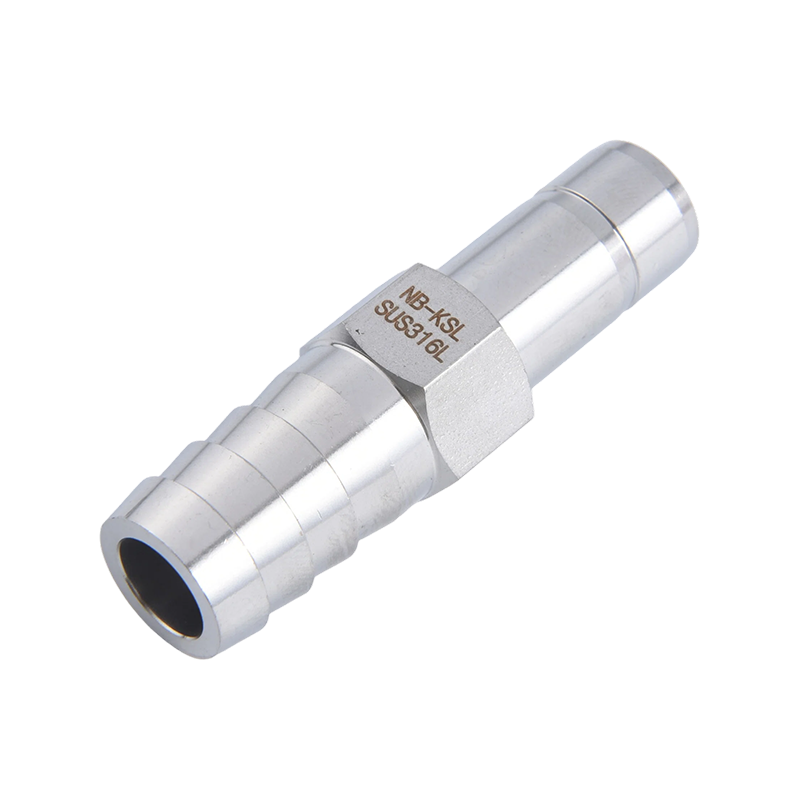

ขั้วต่อเจดีย์ท่อตรงสแตนเลส 316L

ตัวเชื่อมต่อนี้ใช้เป็นหลักในระบบท่อตรงเป็นส่วนประกอบเชื่อมต่อระหว่างส่วนท่อสองส่วน ช่วยให้สามารถติดตั้ง ถอดแยกชิ้นส่วน และบำรุงรักษาได้อย่างรวดเร็ว โครงสร้างที่เป็นเอกลักษณ์ซึ่งมีการออกแบบขั้นบันไดเป็นรูปเจดีย์ ช่วยให้กระจายความเค้นได้สม่ำเสมอภายใต้แรงดัน การสั่นสะเทือน และการเปลี่ยนแปลงของอุณหภูมิ ซึ่งช่วยลดความเสี่ยงของการรั่วไหลและการสึกหรอของท่อ โครงสร้างรูปทรงเจดีย์เป็นแนวคิดการออกแบบหลักของตัวเชื่อมต่อนี้ การออกแบบบอสหลายชั้นจะเพิ่มพื้นที่สัมผัสระหว่างตัวเชื่อมต่อและท่อ ช่วยเพิ่มเสถียรภาพทางกล โครงสร้างขั้นบันไดกระจายแรงดันภายในและแรงสั่นสะเทือนอย่างสม่ำเสมอ ลดความเสี่ยงของความล้มเหลวเมื่อยล้า และการออกแบบรูปทรงเจดีย์ช่วยให้หน้าสัมผัสการซีลหลายจุดสะดวกขึ้น ซึ่งช่วยปรับปรุงประสิทธิภาพการซีลโดยรวม

  • คำอธิบาย
  • ติดต่อเรา

คอนเนคเตอร์ท่อ

เชื่อมต่อท่อเศษส่วนกับท่อ

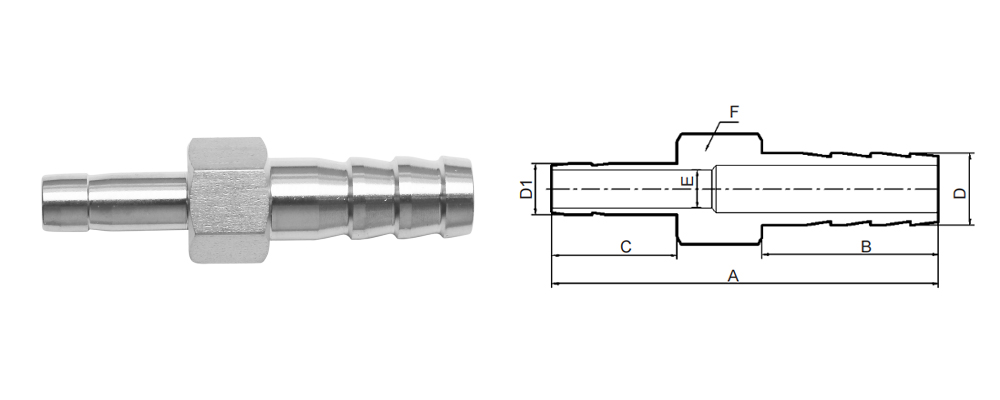

แคตตาล็อก

จำนวน

A

B

C

E

D

D1

F

1/4-4มม

PJT-02-4

41.4

15

15.7

2.5

4.80

6.35

12

1/4-6มม

PJT-02-6

46.5

20.1

15.7

4.8

7.27

6.35

12

1/4-8มม

PJT-02-8

46.5

22.1

15.7

4.8

9

6.35

12

1/4-10มม

PJT-02-10

50.3

22.1

15.7

4.8

11.9

6.35

14

3/8-8มม

PJT-03-8

49.3

22.1

17.6

6

9

9.52

12

3/8-10มม

PJT-03-10

50.3

22.1

17.6

6

11.9

9.52

14

3/8-12มม

PJT-03-12

52.1

23.8

17.6

7.1

14.5

9.52

16

1/2-8มม

PJT-04-8

55.9

22.1

23.2

6

9

12.7

14

1/2-10มม

PJT-04-10

55.9

22.1

23.2

8

11.9

12.70

14

1/2-12มม

PJT-04-12

57.7

23.8

23.2

9.5

14.5

12.7

16

6มม.-6มม

PJT-6-6

46.5

20.1

15.7

4.8

7.27

6

12

8 มม.-8 มม

พีเจที-8-8

46.5

22.1

16.5

6

9

8

12

3/8-3/8

PJT-03-03

50.3

22.1

17.6

7.1

11.43

9.52

14

1/2-1/2

PJT-04-04

57.7

23.8

23.2

9.5

15.12

12.7

16

3/4-3/4

PJT-06-06

62

26.7

24.6

15

22.72

19.05

27
