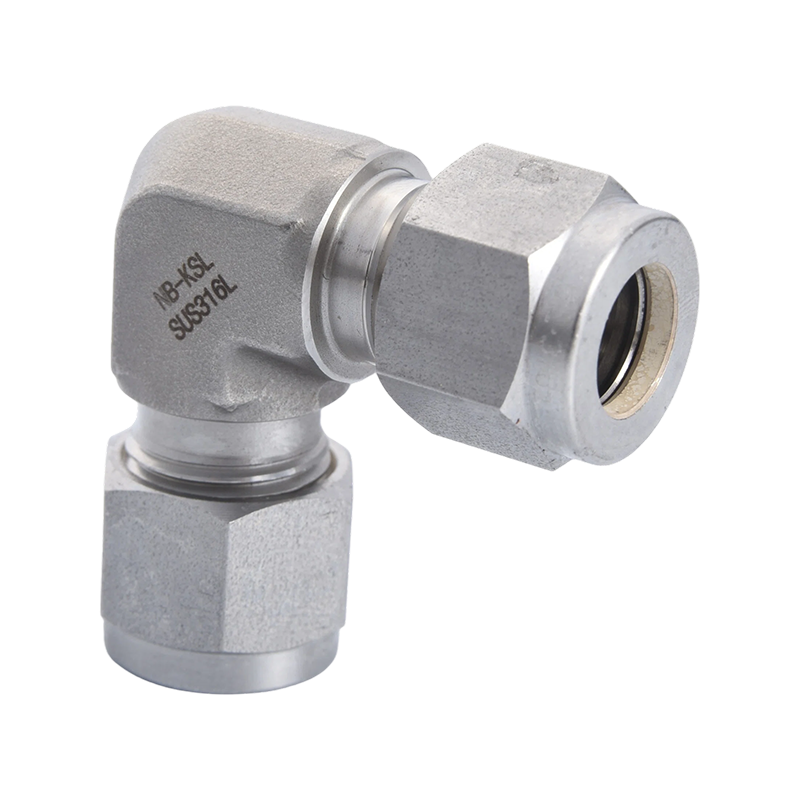

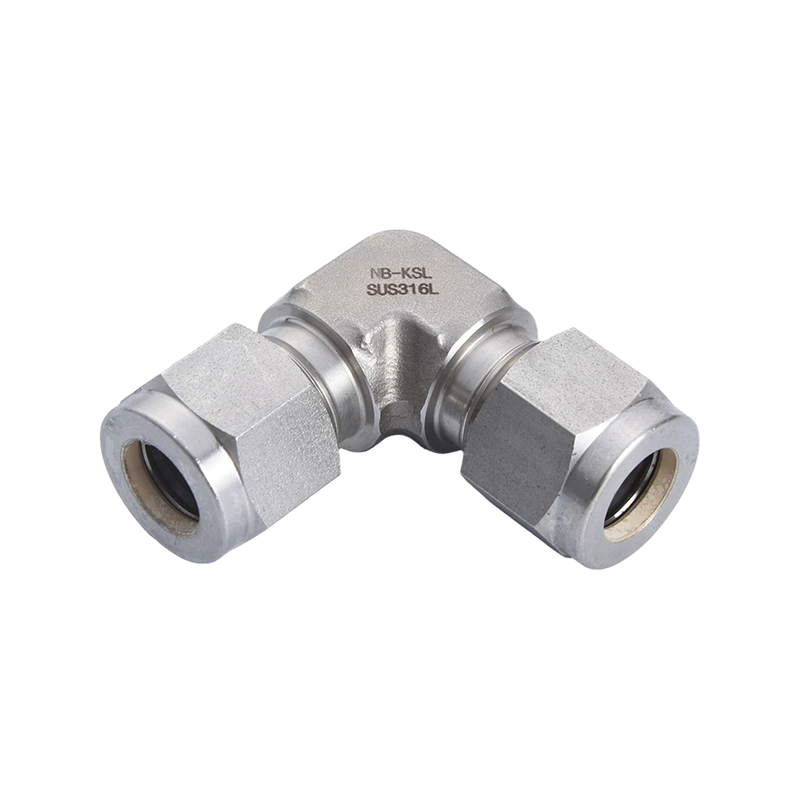

ข้อศอกข้อต่อฟิตติ้งสแตนเลส 316L

ในรูปแบบการวางท่อที่ซับซ้อน การเลี้ยว 90 องศามักเป็นจุดที่แรงดันผันผวนและความต้านทานการไหลมีความเข้มข้นมากที่สุด ข้องอสเตนเลสสตีล 316L ของเราได้รับการออกแบบทางวิศวกรรมมาโดยเฉพาะเพื่อตอบสนองความท้าทายนี้ มันไม่ได้เป็นเพียงตัวเชื่อมต่อทิศทางเท่านั้น มันเป็นส่วนขยายที่แข็งแกร่งของขอบเขตความปลอดภัยของระบบของคุณ

เหตุใดจึงเลือกข้อศอกนี้
ตัวฟอร์จที่มีความแม่นยำ: ผลิตภัณฑ์นี้ผลิตขึ้นโดยใช้กระบวนการตีขึ้นรูปที่มีความแม่นยำ 316L ซึ่งแตกต่างจากทางเลือกการเชื่อมระดับต่ำ ซึ่งจะช่วยลดความเสี่ยงของการกระจุกตัวของความเครียดที่เกี่ยวข้องกับการเชื่อม เส้นทางการไหลภายในที่ได้รับการปรับปรุงจะช่วยลดแรงดันตกคร่อมเมื่อตัวกลางเปลี่ยนผ่านการเลี้ยว
ความบริสุทธิ์ของวัสดุขั้นสูงสุด: เกรดคาร์บอนต่ำพิเศษ 316L ให้ความต้านทานการกัดกร่อนในระดับสูงสุด โดยจะรักษาความสมบูรณ์ของโครงสร้างแม้จะสัมผัสกับก๊าซเปรี้ยว สเปรย์เกลือทะเล หรือก๊าซในกระบวนการเซมิคอนดักเตอร์ที่มีฤทธิ์รุนแรงเป็นเวลานาน
ประสิทธิภาพการปิดผนึกแบบฮาร์ดคอร์: ใช้โครงสร้างการล็อคแบบกลไกแบบปลอกโลหะสองชั้น ปลอกโลหะจะยึดพื้นผิวท่ออย่างแม่นยำในระหว่างการขันให้แน่นเพื่อสร้างซีลกันแก๊สและโลหะต่อโลหะ มันแสดงให้เห็นถึงเสถียรภาพที่ยอดเยี่ยมภายใต้แรงกดดันสูงพิเศษ (สูงถึง 6000 psi) และการหมุนเวียนความร้อนที่รุนแรง
ประสิทธิภาพการจัดวางเชิงพื้นที่: การออกแบบที่กะทัดรัดช่วยให้สามารถติดตั้งท่อได้อย่างแม่นยำภายในตู้หรือแผงควบคุมที่จำกัด ทำให้มั่นใจได้ว่ารูปแบบระบบของคุณยังคงความสวยงามและเป็นมืออาชีพ

  • คำอธิบาย
  • ติดต่อเรา

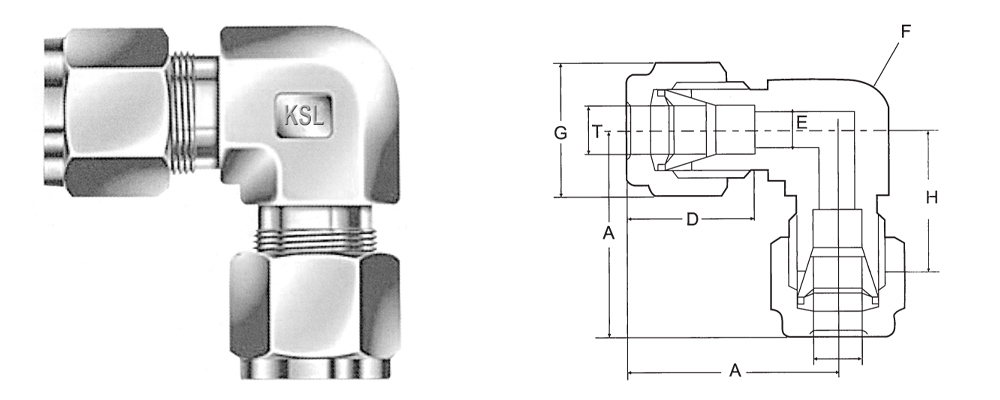

(เมตริก)

หมายเลขแค็ตตาล็อก

หลอด O.D

A

D

E

F

G

H

ยูเอ-3-0

3

23.5

13.5

2.4

9.5

12

16.5

ยูเอ-4-0

4

25.8

13.7

3

12.7

12

19.1

ยูอี-6-0

6

27.8

15.8

4.8

12.7

14

20

ยูอี-8-0

8

28.7

16.7

6.4

15

16

21

ยูอี-10-0

10

31.6

19.6

7.9

17

19

24

ยูอี-12-0

12

36.7

23.8

9.5

21

22

25.9

ยูอี-14-0

14

38.8

24.8

11.1

24

27

28

ยูอี-15-0

15

38.4

24.4

11.9

24

27

28

ยูอี-16-0

16

38.4

24.4

12.7

24

27

28

ยูอี-18-0

18

39.3

24.8

15.1

28

30

28.5

ยูอี-20-0

20

43

25.5

15.9

32

32

32.5

ยูอี-22-0

22

43

25.5

18.3

32

32

32.5

ยูอี-25-0

25

47.7

31.7

21.8

34.5

38

35


(เศษส่วน)

UE-01-0

1/8

24

14

2.4

9.5

12

16.5

UE-02-0

1/4

27.4

15.8

4.8

12.7

14

19.6

UE-03-0

3/8

30.7

19.6

7.1

17

17

23.1

UE-04-0

1/2

36.3

23.4

10.4

21

22

25.9

UE-05-0

5/8

38.4

24.4

12.7

24

27

28

UE-06-0

3/4

38.9

24.4

15.7

28

30

28.5

UE-08-0

1"

47.7

31.7

22.4

34.5

38

35
