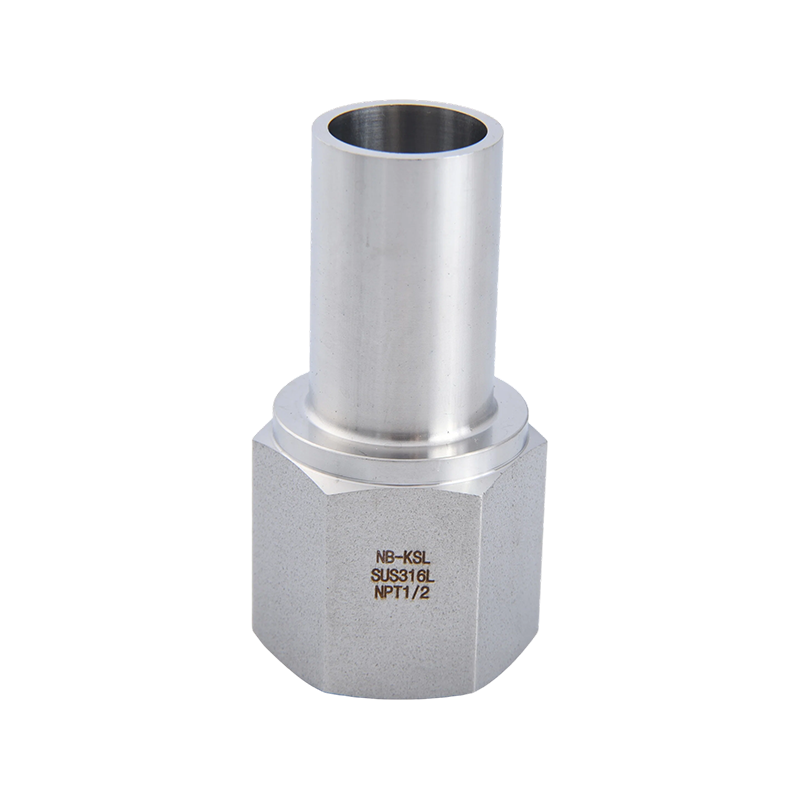

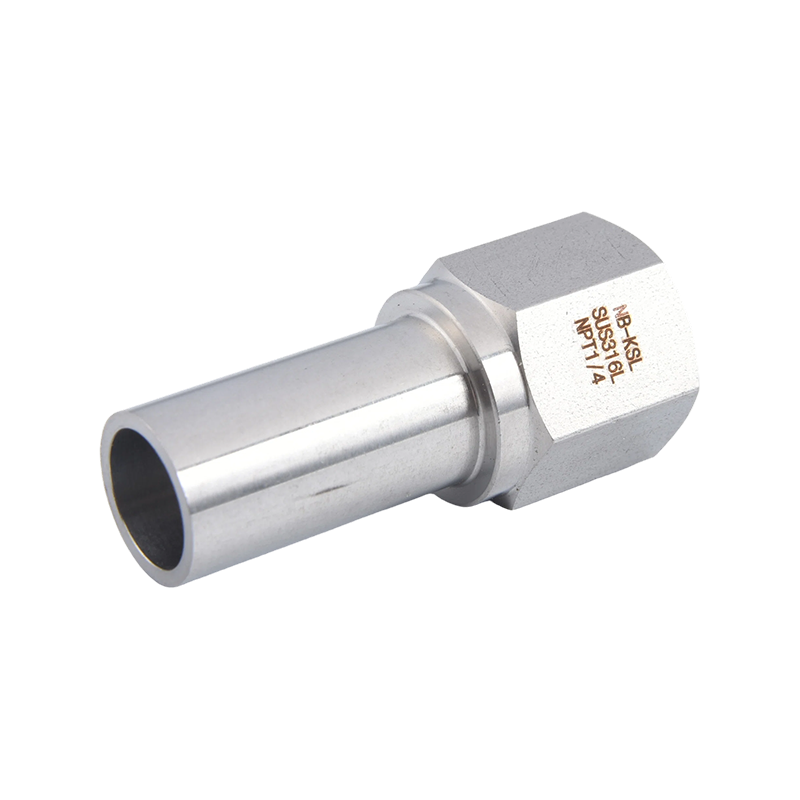

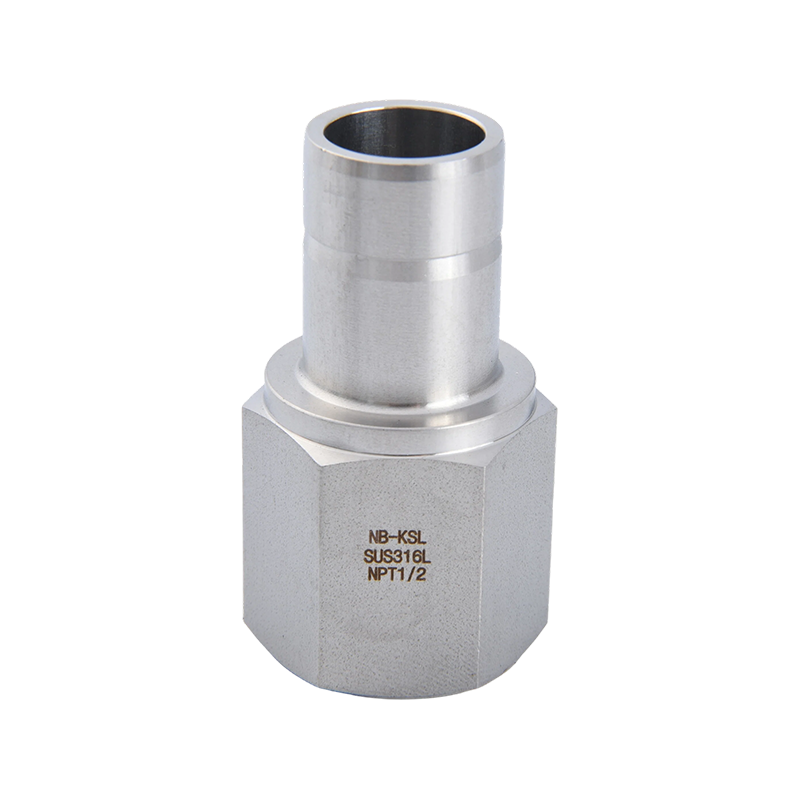

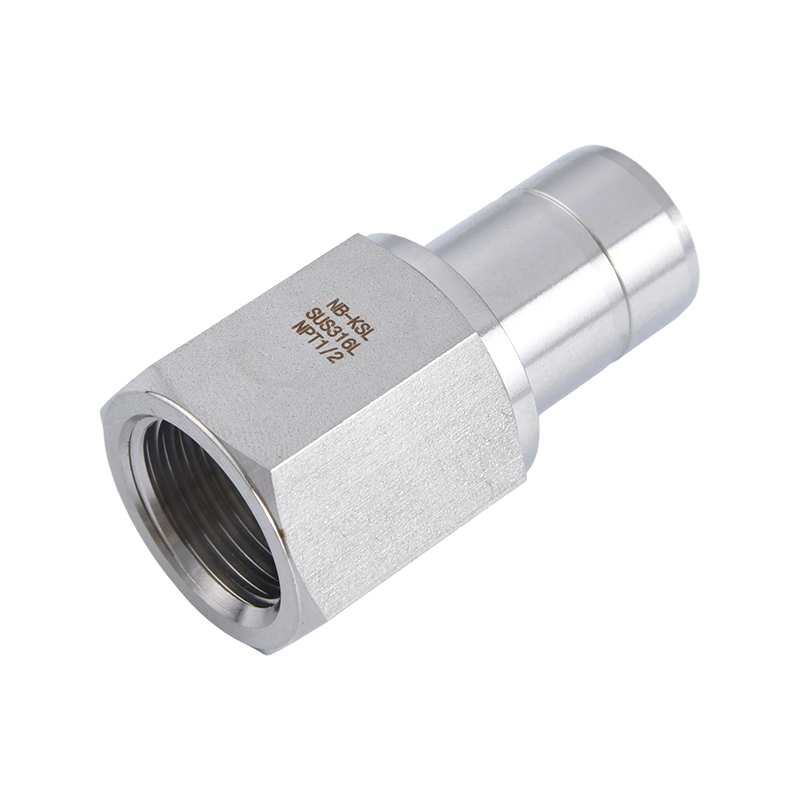

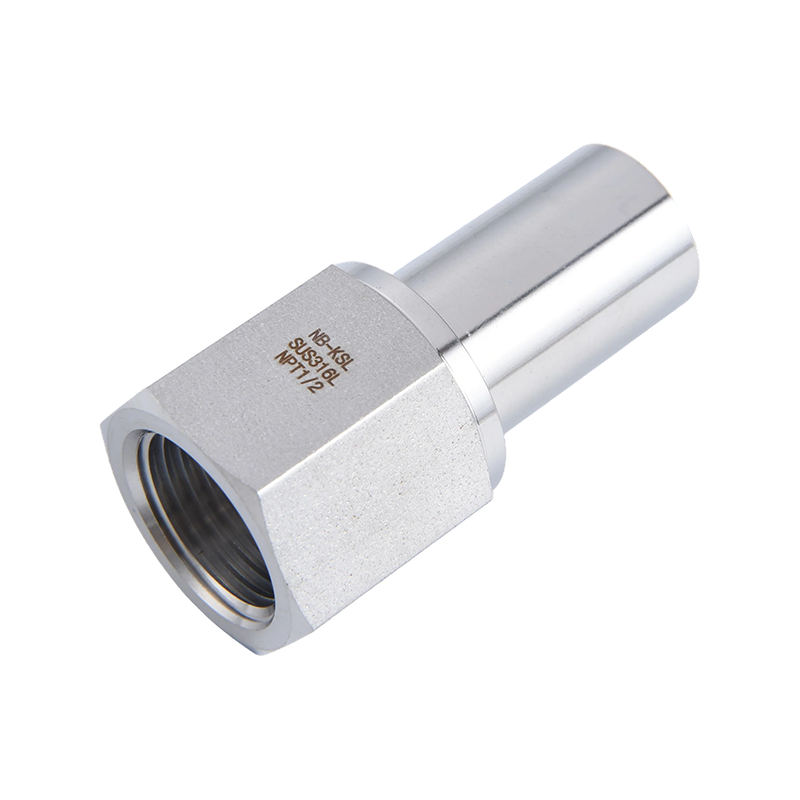

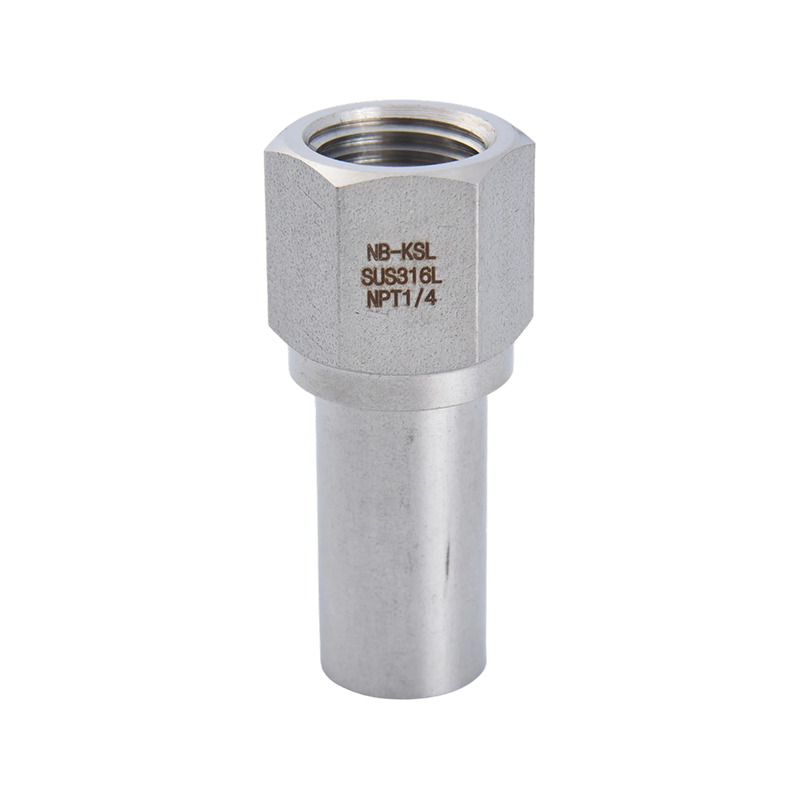

ท่อสแตนเลส 316L กับอะแดปเตอร์เกลียวภายในท่อ

อะแดปเตอร์เกลียวภายในท่อสแตนเลส 316L เป็นข้อต่อเปลี่ยนผ่านสำหรับเชื่อมต่อระบบท่อ โครงสร้างหลักได้รับการออกแบบเพื่อเชื่อมต่อสองท่อหรือพอร์ตอุปกรณ์ คุณลักษณะหลักของผลิตภัณฑ์นี้อยู่ที่วิธีการเชื่อมต่อแบบคอมโพสิต: ปลายด้านหนึ่ง (หรือปลายทั้งสองข้าง) ได้รับการออกแบบให้มีมุมเอียงแบบชนสำหรับการเชื่อมถาวรกับท่อ ในขณะที่ด้านในกลึงด้วยเกลียวในมาตรฐานสำหรับต่อวาล์ว อุปกรณ์ ข้อต่อ หรือส่วนประกอบอื่นๆ ด้วยเกลียวภายนอก การออกแบบช่องการไหลภายในจัดลำดับความสำคัญของการเปลี่ยนแปลงที่ราบรื่น ผนังด้านในได้รับการขัดเงาอย่างประณีต โดยโดยทั่วไปแล้วความหยาบของพื้นผิวจะถูกควบคุมที่ Ra ≤ 0.8μm หรือต่ำกว่านั้น (เกรดด้านสุขอนามัยสามารถเข้าถึง Ra ≤ 0.5μm) ซึ่งไม่เพียงแต่ลดค่าสัมประสิทธิ์ความต้านทานของของเหลวเท่านั้น แต่ที่สำคัญกว่านั้น ยังป้องกันการกักเก็บและการสะสมของตัวกลางที่พื้นผิวขรุขระ

  • คำอธิบาย
  • ติดต่อเรา

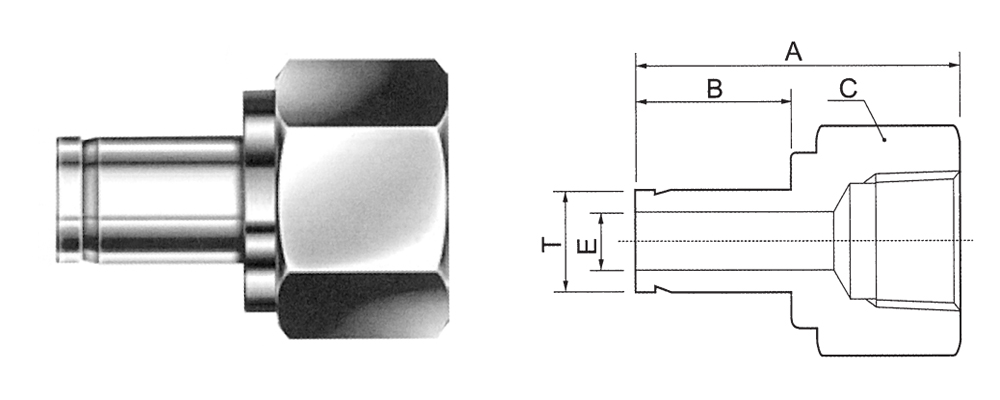

อะแดปเตอร์หญิง/ท่อ

เชื่อมต่อพอร์ต NB-KSL แบบเศษส่วนกับเธรด PT (NPT) ตัวผู้

แคตตาล็อก จำนวน

T หลอด โอ.ดี.

PT-NPT หญิง ท่อ
ขนาด

A

B

C

E

ทีเอเอฟ-02-1

1/4

1/8

33

15.7

14

4.4

ทีเอเอฟ-02-2

1/4

1/4

37.1

15.7

19

4.4

ทีเอเอฟ-02-3

1/4

3/8

39.5

15.7

22

4.4

ทีเอเอฟ-02-4

1/4

1/2

45.5

15.7

27

4.4

ทีเอเอฟ-03-1

3/8

1/8

34.3

17.6

14

7.1

ทีเอเอฟ-03-2

3/8

1/4

38.1

17.6

19

7.1

ทีเอเอฟ-03-3

3/8

3/8

40.4

17.6

22

7.1

ทีเอเอฟ-03-4

3/8

1/2

46.7

17.6

27

7.1

ทีเอเอฟ-04-2

1/2

1/4

43.4

23.2

19

9.9

ทีเอเอฟ-04-3

1/2

3/8

45.5

23.2

22

9.9

ทีเอเอฟ-04-4

1/2

1/2

52.3

23.2

27

9.9

ทีเอเอฟ-06-4

3/4

1/2

53.8

24.7

27

15

ทีเอเอฟ-06-6

3/4

3/4

54.9

24.7

32

15

ทีเอเอฟ-06-8

3/4

1"

58.4

24.7

41

15

ทีเอเอฟ-08-4

1"

1/2

60.7

30.7

27

18

ทีเอเอฟ-08-8

1"

1"

64.2

30.7

41

19.6


เชื่อมต่อพอร์ตเมตริก NB-KSL เข้ากับเธรด PT (NPT) ตัวผู้

ทีเอเอฟ-6-1 6 1/8 33 15.7 14 4.4
ทีเอเอฟ-6-2 6 1/4 37.1 15.7 19 4.4
ทีเอเอฟ-6-3 6 3/8 39.5 15.7 22 4.4
ทีเอเอฟ-8-2 8 1/4 37.6 16.5 19 6
ทีเอเอฟ-8-3 8 3/8 39.5 16.5 22 6
ทีเอเอฟ-10-2 10 1/4 38.1 17.6 19 7.1
ทีเอเอฟ-10-3 10 3/8 40.1 17.6 22 7.1
ทีเอเอฟ-10-4 10 1/2 46.5 17.6 27 7.1
ทีเอเอฟ-12-2 12 1/4 43.4 23.2 19 9.1
ทีเอเอฟ-12-3 12 3/8 45.5 23.2 22 9.1
ทีเอเอฟ-12-4 12 1/2 52.3 23.2 27 9.1
ทีเอเอฟ-18-4 18 1/2 54.8 24.7 27 14

ขนาดทั้งหมดมีหน่วยเป็นมิลลิเมตร เว้นแต่จะระบุไว้เป็นอย่างอื่น สำหรับการอ้างอิงเท่านั้นอาจมีการเปลี่ยนแปลง
