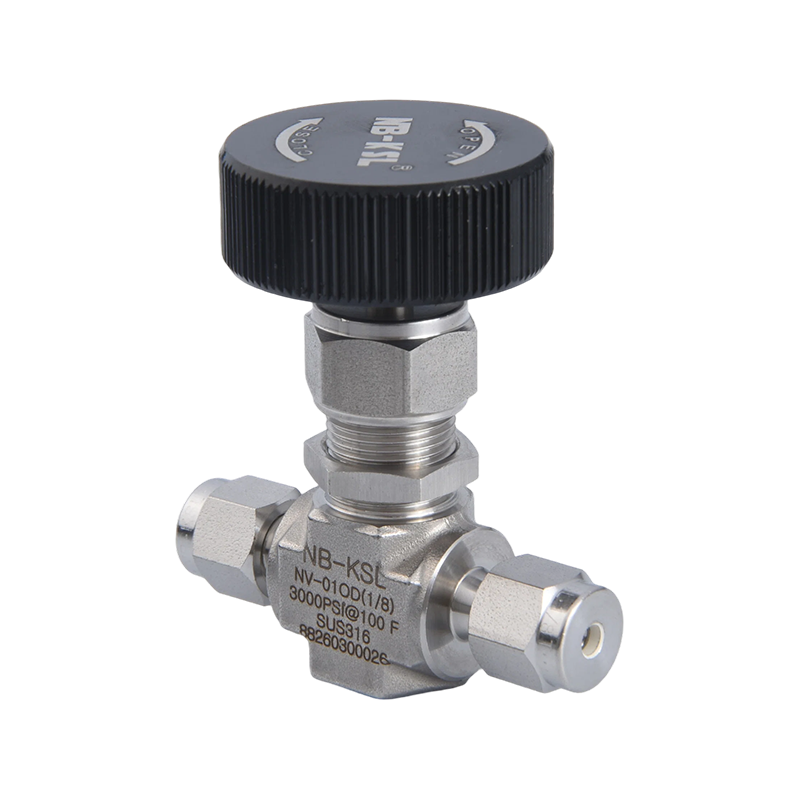

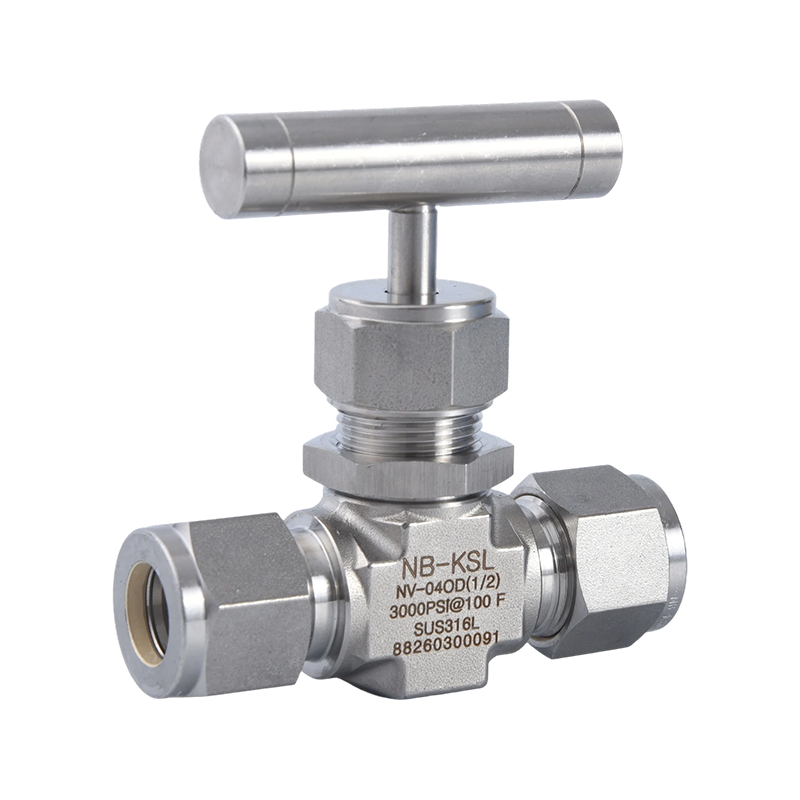

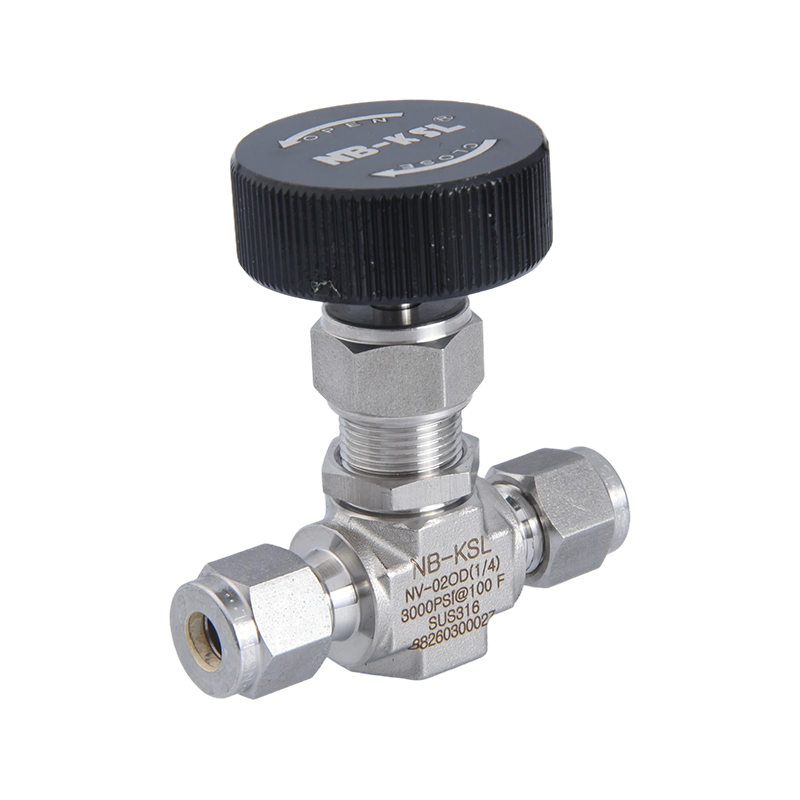

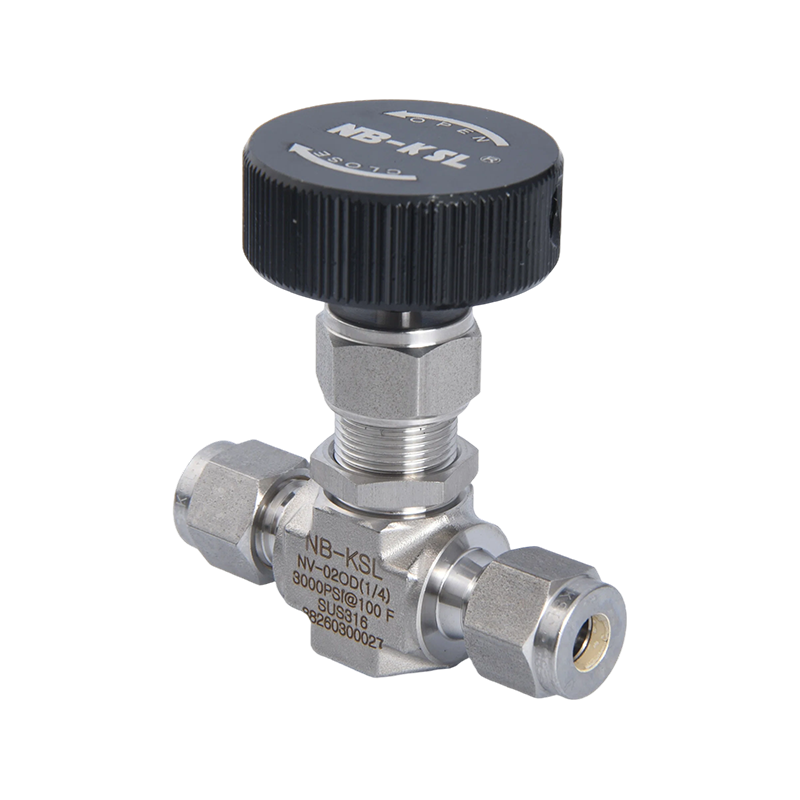

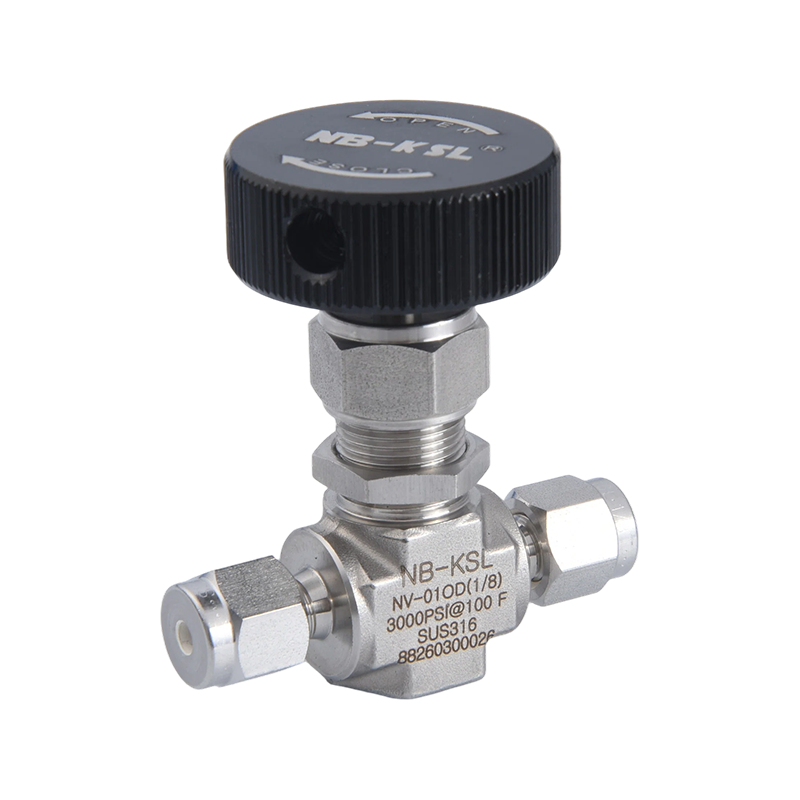

วาล์วเข็มฝากระโปรงสเตนเลสสตีล 316L

บ้าน / สินค้า / วาล์วเข็มสแตนเลส / วาล์วเข็มฝากระโปรงสเตนเลสสตีล 316L

วาล์วเข็มฝากระโปรงสเตนเลสสตีล 316L

คุณสมบัติ
แรงดันใช้งานสูงสุด 10.000psig (689bar)
พิกัดอุณหภูมิตั้งแต่ -65F ถึง 450°F(-54°C ถึง 232°C) พร้อมบรรจุ PTFE มาตรฐาน และสูงถึง 1200F(648°°C) พร้อมบรรจุ Grafoil ที่เป็นอุปกรณ์เสริม
วัสดุของตัวเครื่องมีจำหน่ายในรุ่น 316SS, Carbon Steel และ Alloy 400(Monel)
แรงดันใช้งานสูงสุด 10.000psig (689bar)
เทสเลดจากโรงงาน 100%

  • คำอธิบาย
  • ติดต่อเรา

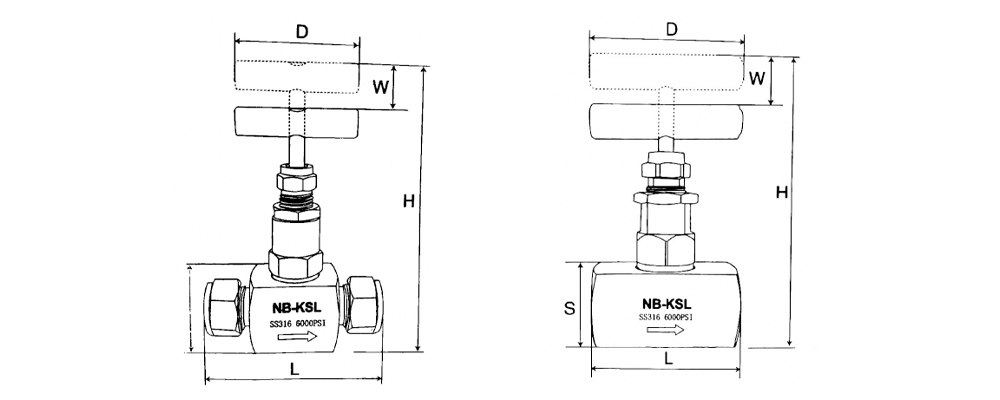

ตารางขนาดวาล์วพินตัวเชื่อมต่อตัวเรือน NVF

สั่งซื้อรุ่น

ขนาด

D

D1

L

H

S

W

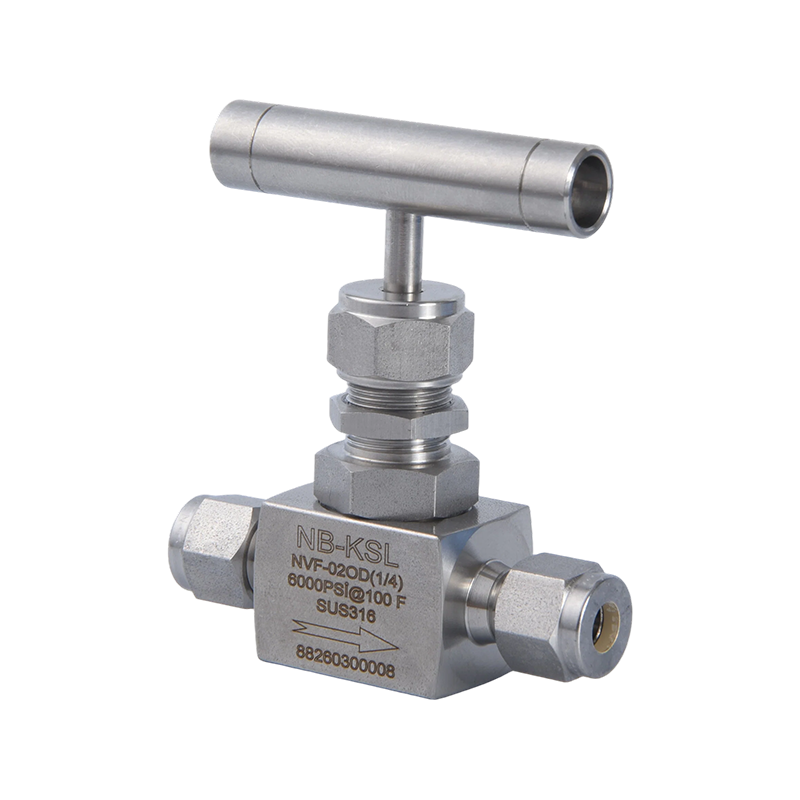

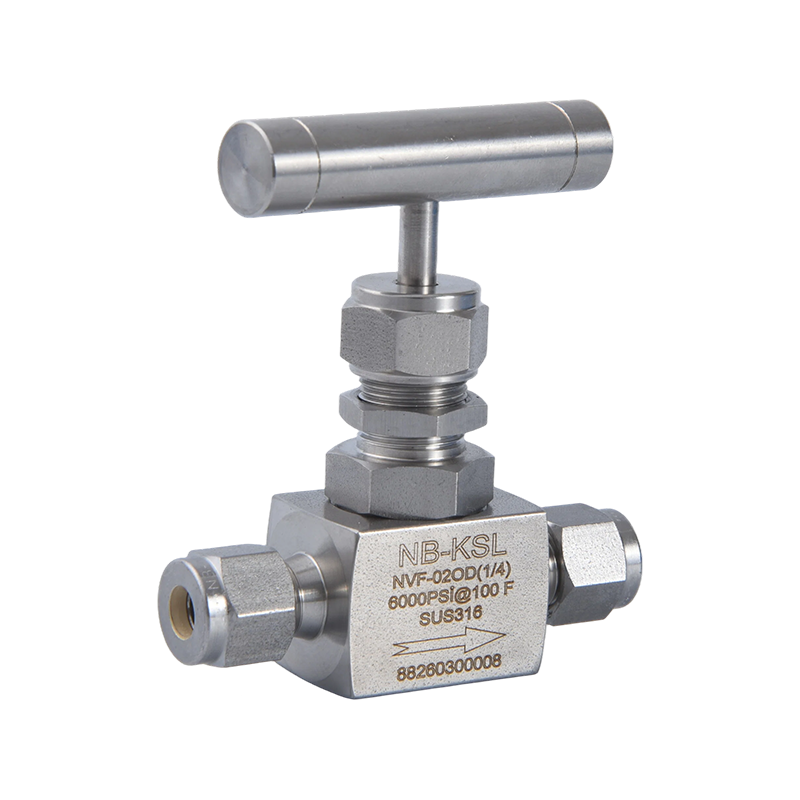

NVF-02OD

1/4ลค

55

3

65

74

22

4

NVF-03OD

3/8ลค

55

5

65

74

22

4

NVF-04OD

1/2ลค

55

6

77

96

28

5

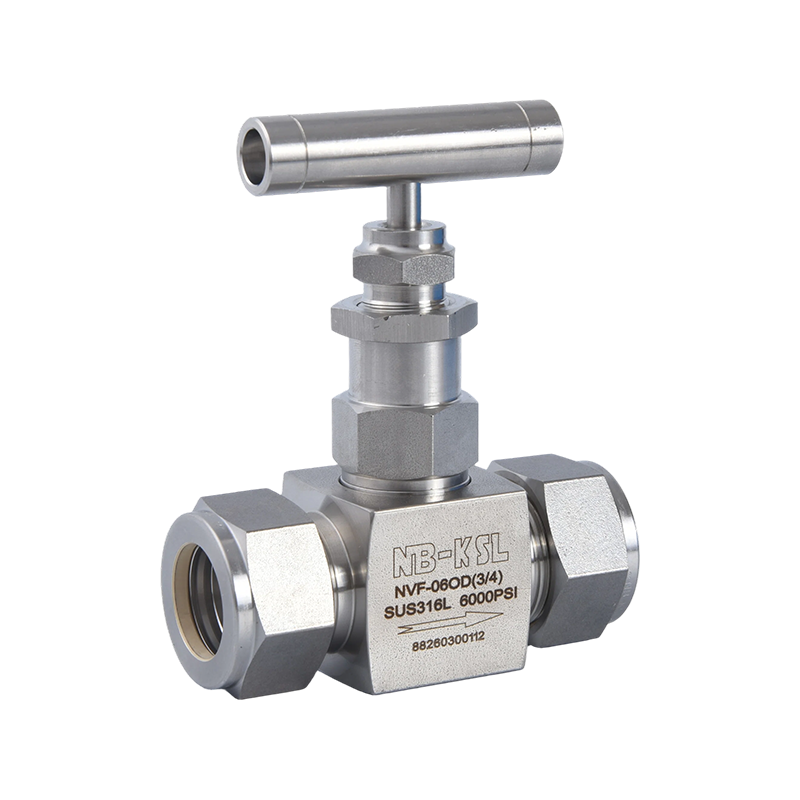

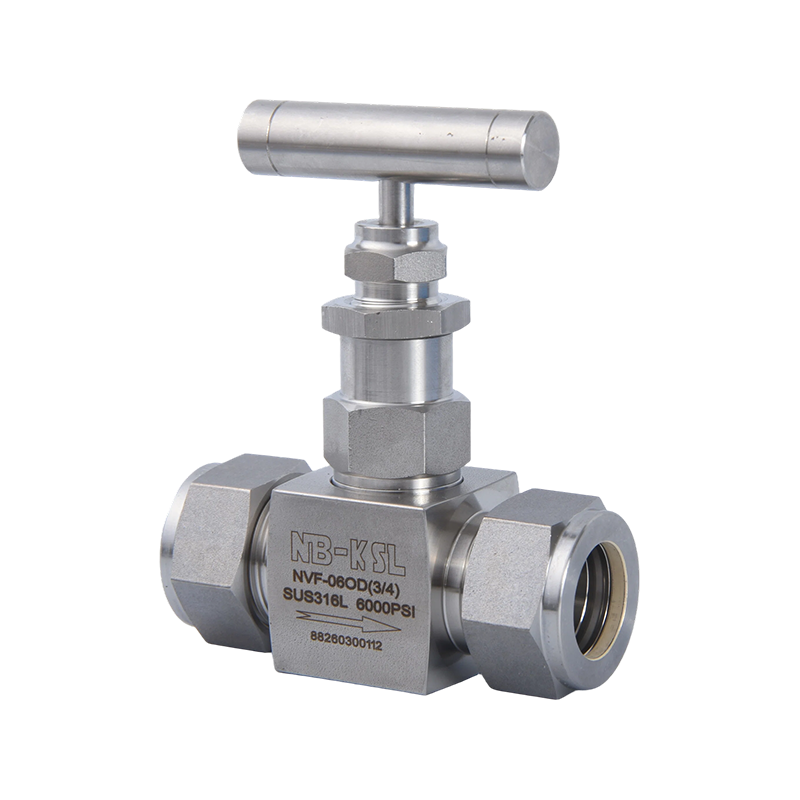

NVF-06OD

3/4ลค

55

7

77

96

28

5

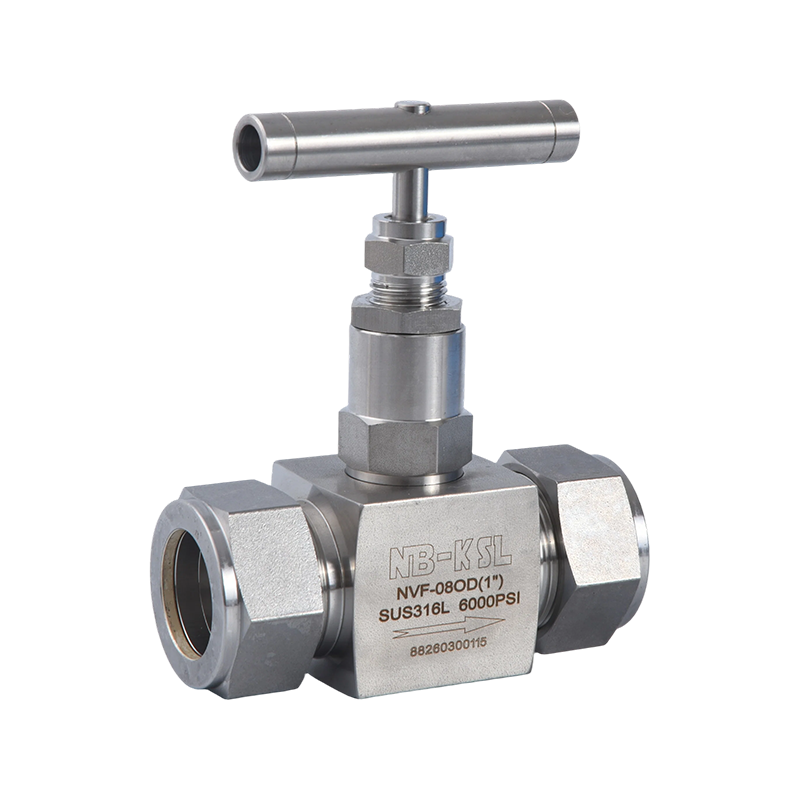

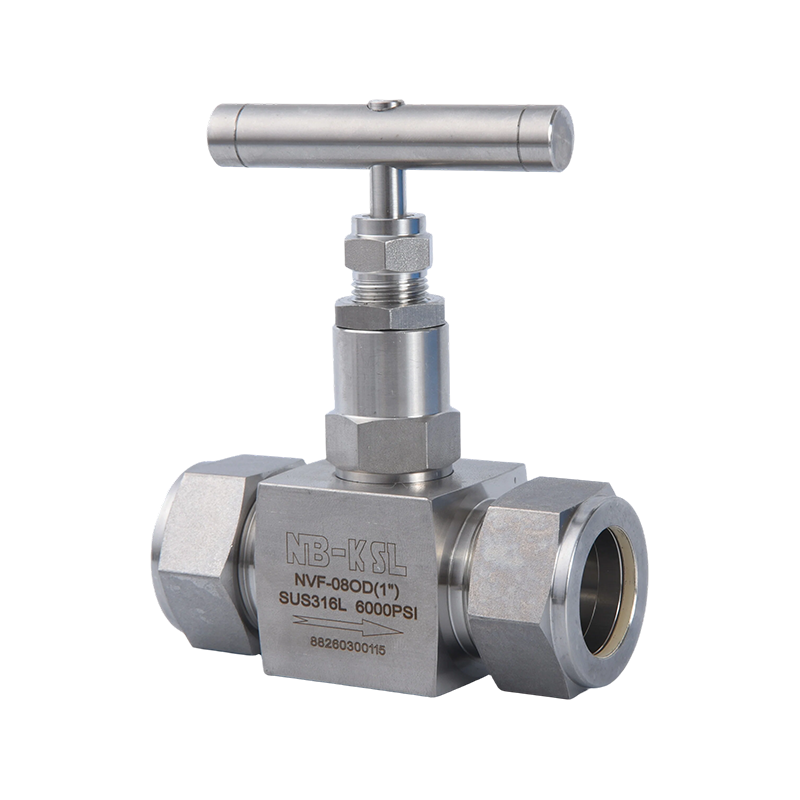

NVF-08OD

1"ลก

75

10

96

119

40

7

NVF-6OD

6mmLOK

55

3

65

74

22

4

NVF-8OD

8mmLOK

55

4

65

74

22

4

NVF-10OD

10มมLOK

55

5

65

74

22

4

NVF-12OD

12มม.LOK

55

6

77

96

28

5

NVF-14OD

14มม.LOK

55

7

77

96

28

5

NVF-16OD

16มม.LOK

55

7

77

96

28

5

NVF-18OD

18มม.LOK

55

7

77

96

28

5

NVF-20OD

20มม.LOK

75

10

92

117

38

7

NVF-22OD

22มม.LOK

75

10

92

117

38

7

NVF-25OD

25มม.LOK

75

10

96

119

40

7

ตารางขนาดวาล์วเข็มเชื่อมต่อแบบเกลียว NVF

สั่งซื้อรุ่น

P

D

D1

L

H

S

W

NVF-02F

1/4

55

5

55

74

22

4

NVF-02M

1/4

55

5

55

74

22

4

NVF-03F

3/8

55

5

55

74

22

4

NVF-03M

3/8

55

5

55

74

22

4

NVF-04F

1/2

55

6

65

96

28

5

NVF-04M

1/2

55

6

65

96

28

5

NVF-06F

3/4

75

10

71

117

38

7

NVF-08F

1"

75

10

71

119

40

7


ตารางขนาดภายนอกวาล์วหรี่ชนิดสกรู NVF

สั่งซื้อรุ่น

P

D

D1

L

H

S

W

NVF-10W

10mm

55

5

108

74

22

4

NVF-12W

12มม

55

6

122

96

28

5

NVF-14W

14มม

55

6

122

96

28

5

ข้อมูลขนาดข้างต้นใช้สำหรับการอ้างอิงเท่านั้น การเปลี่ยนแปลงใดๆ จะไม่แจ้งให้ทราบแยกต่างหาก หากไม่มีการระบุข้อมูลจำเพาะ โปรดสอบถามกับโรงงานเพื่อทำการปรับแต่ง
