วาล์วมุมขวา BV สแตนเลส 316L

บ้าน / สินค้า / บอลวาล์วสแตนเลส / วาล์วมุมขวา BV สแตนเลส 316L

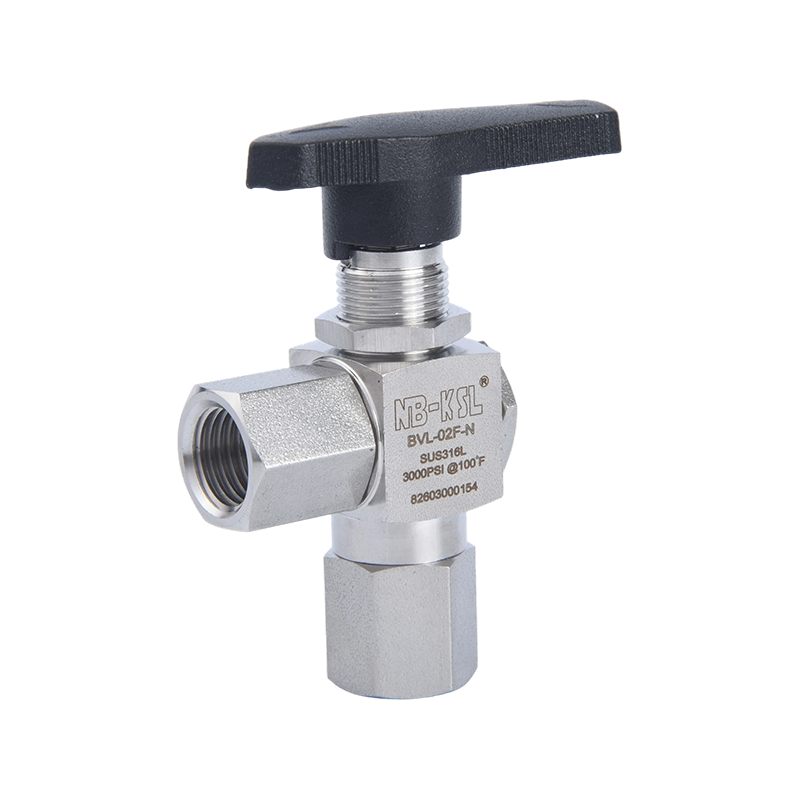

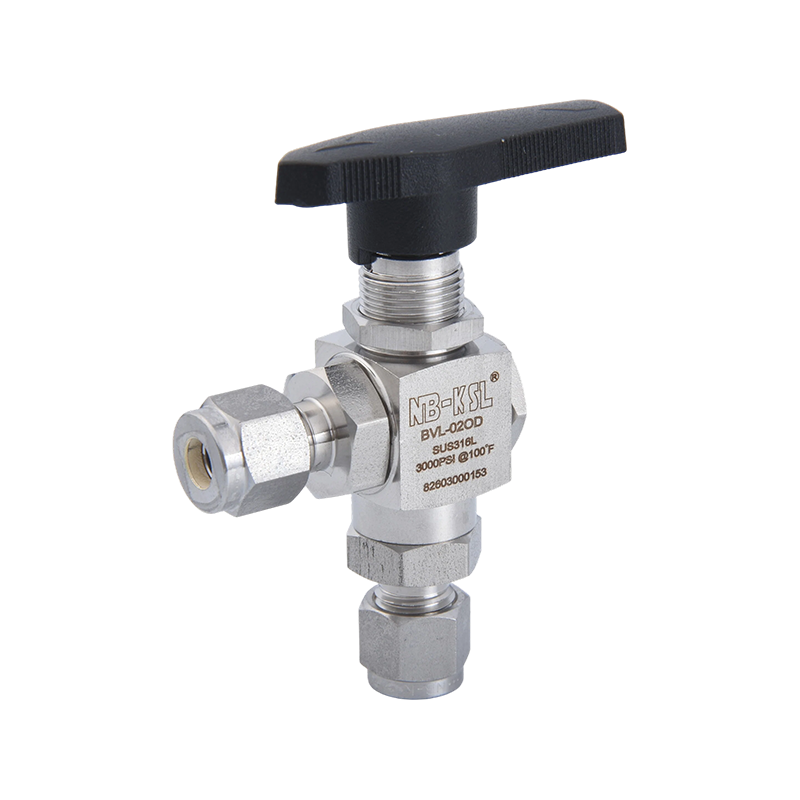

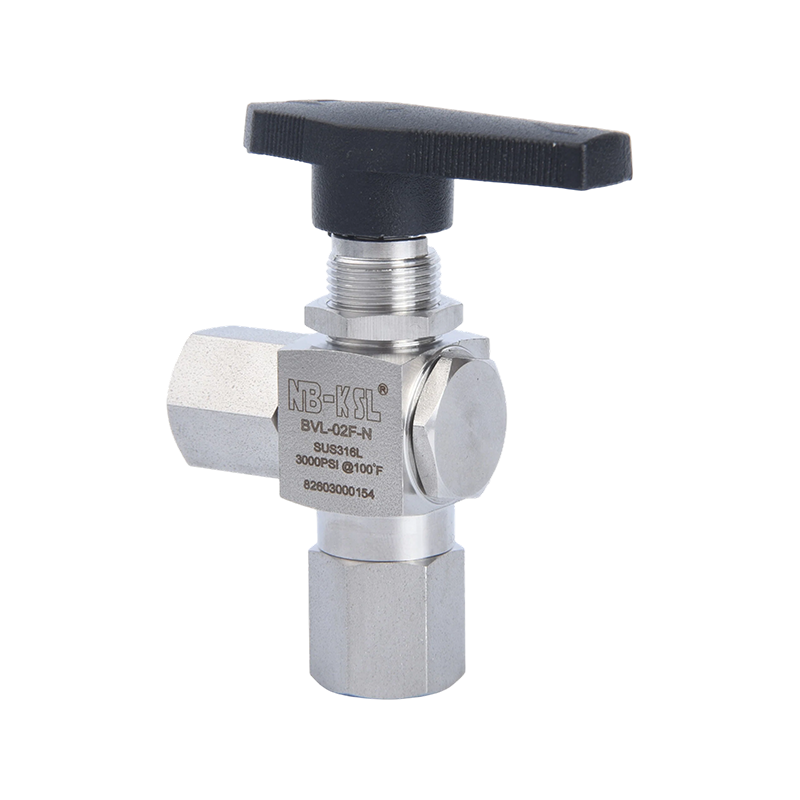

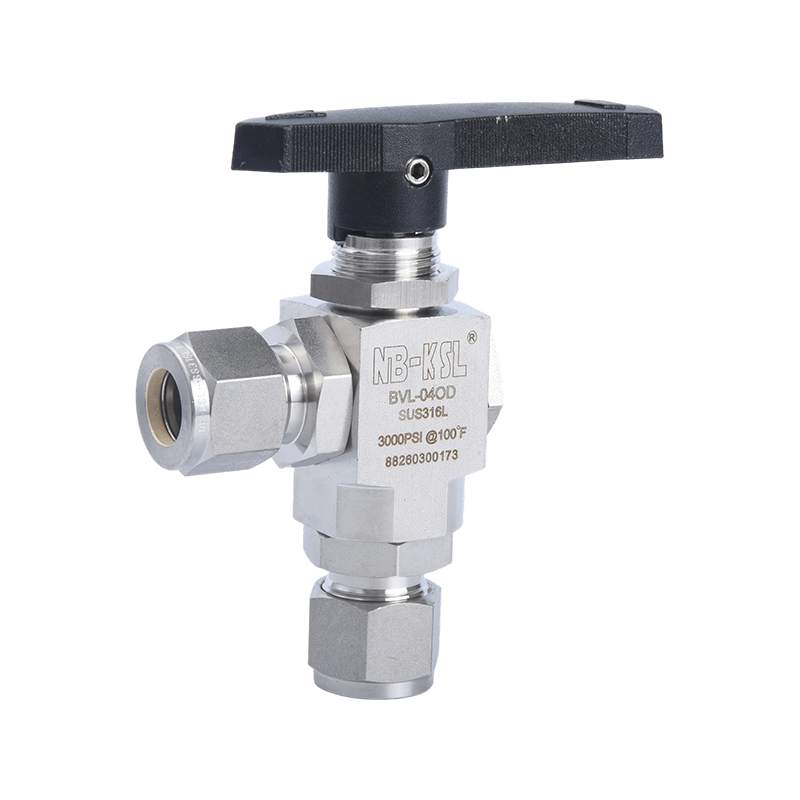

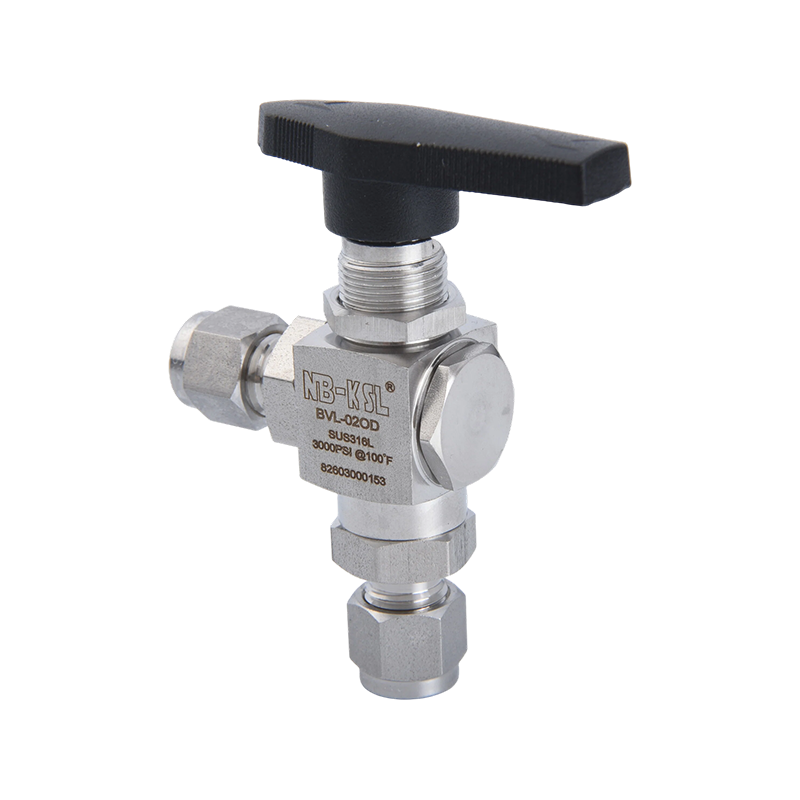

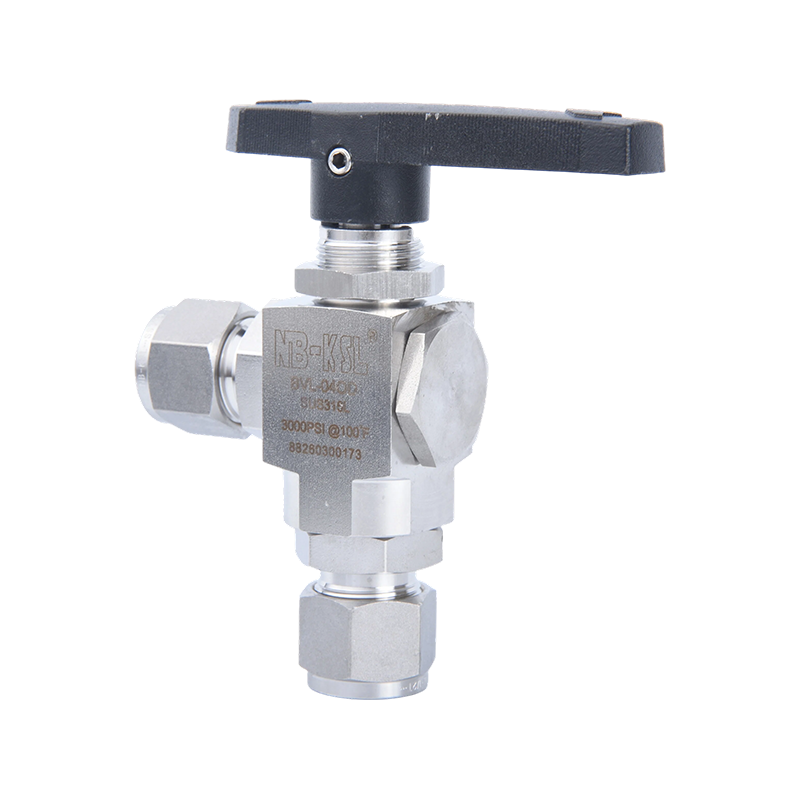

วาล์วมุมขวา BV สแตนเลส 316L

วาล์วเหล่านี้ใช้เพื่อควบคุม กระจาย หรือตัดการไหลของตัวกลางของเหลวและก๊าซเป็นหลัก วาล์วมุมขวาชนิด BV และวาล์วสามทางที่มีการออกแบบเส้นทางของไหลที่เป็นเอกลักษณ์ ช่วยให้มีรูปแบบระบบท่อที่ยืดหยุ่นมากขึ้น พื้นที่การติดตั้งที่กะทัดรัดมากขึ้น และการทำงานที่ง่ายและสะดวก ตัววาล์วได้รับการตัดเฉือนอย่างแม่นยำภายในเพื่อให้แน่ใจว่าสูญเสียแรงดันน้อยที่สุดระหว่างการไหลของของไหล วาล์วมุมขวาชนิด BV มีการโค้งงอ 90° ในทางเดินของไหล การออกแบบที่กะทัดรัดนี้ให้ความยืดหยุ่นในการติดตั้งที่ยอดเยี่ยมในสภาพแวดล้อมที่มีพื้นที่จำกัดหรือรูปแบบไปป์ไลน์ที่ซับซ้อน ช่วยประหยัดพื้นที่ในการติดตั้งและลดความเครียดของไปป์ไลน์ได้อย่างมีประสิทธิภาพ วาล์วทั้งสองประเภทใช้การออกแบบโครงสร้างภายในที่มีประสิทธิภาพ โดยมีความพอดีระหว่างบ่าวาล์วและแกนวาล์ว ช่วยลดการสูญเสียแรงดันระหว่างการไหลของของไหล นอกจากนี้ยังเพิ่มประสิทธิภาพการทำงานของอุทกไดนามิก ลดจุดบอดและการสะสมของของเหลว และรับประกันการควบคุมการไหลที่มีประสิทธิภาพและเสถียร

  • คำอธิบาย
  • ติดต่อเรา

บอลวาล์วโดยตรง

ข้อมูลจำเพาะ

A

B

D1 รูในรูทะลุ

C

D

E

F

BV-01OD

1/8ลค

63

31

2.4

50

47

5

14

BV-02OD

1/4ลค

66.4

31

5

50

47

5

14

BV-03OD

3/8ลค

70.5

31

5

50

47

5

14

BV-04OD

1/2ลค

86

40

10

84

62

5

19

BV-06OD ตัวเล็ก

3/4ลค

91

46.4

10

84

62

5

19

BV-08OD

1"ลก

115.5

61.5

14

81

81

6

27

บีวี-3โอดี

3mmLOK

63

31

2.4

50

47

5

14

บีวี-4โอดี

4mmLOK

63

31

3

50

47

5

14

BV-6OD

6mmLOK

66.4

31

5

50

47

5

14

BV-8OD

8mmLOK

68.4

31

5

50

47

5

14

BV-10OD

10mmLOK

70.5

31

5

50

47

5

14

BV-12OD

12มม.LOK

86

40

10

84

62

5

19

BV-14OD

14 มม.LOK

85

40

10

84

62

5

19

BV-16OD

16มม.LOK

85

40

10

84

62

5

19

BV-18OD

18มม.LOK

91

46.4

10

84

62

5

19

BV-20OD

20มม.LOK

106.8

61.5

14

81

81

6

27

บีวี-22โอดี

22มม.LOK

106.8

61.5

14

81

81

6

27

BV-25OD

25มม.LOK

115.5

61.5

14

81

81

6

27

บอลวาล์วโดยตรง

เอ็นพีที/ปตท

A

B

D1 รูในรูทะลุ

C

D

E

F

BV-01F

1/8

46

/

5

50

47

5

14

บีวี-02เอฟ

1/4

54

/

5

50

47

5

14

บีวี-03เอฟ

3/8

64

1

10

84

62

5

19

บีวี-04เอฟ

1/2

66

1

10

84

62

5

19

บีวี-06เอฟ

3/4

87

1

14

81

81

6

27

บีวี-08เอฟ

1"

109.5

1

14

81

81

6

27
